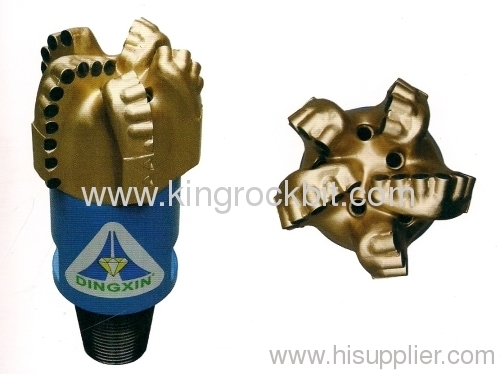

API 5 7/8" TS1354 / M233 PDC Drill Bit
Product Specification | |
Body Type | Steel |
Blade count | 5 |
Face Cutters | 13mm |
Gauge Cutters | 13mm |
Nozzle No. & Type | 5 P |
API Connection (in) | 3 1/2 REG |
Junk Slot Area(sq in) | 5.154 |
Gauge Length | 2 in |
Gauge Protection | Optional Available |
Operating Parameters | |
Rotary Speed | Suitable for Rotary & PDM |
Weight-on-bit | 15 To 70 kN 1.5 <a FCK__AnchorC FCK__AnchorC FCK__AnchorC FCK__AnchorC FCK__AnchorC FCK__AnchorC FCK__AnchorC" name="OLE_LINK9">To 7.0 Tonnes 3,300 To 16,000 lbf |
Flow Rate | 10 To 30 l/s |
Hydraulic Horsepower (HIS) | 2.0 To 4.0 |
Applying Formation | Medium Soft To Medium Hard |
Note:Operating parameters are typical ranges. Please contact us forrecommendations for your individual well. | |
FEATURES:
1.Matrix drill bit with five blades of medium long parabola crown profile and with medium cutter density.
2.Non-planar interfaced diamond/carbide cutters absorb effectively high stress and minimize cutter fracturing and wearing.
3.Asymmetrical blades arrangement and special load-balanced cutter arrangement design improve bit stability and therefore higher ROP.
