API Tricone Oil Drill Bits from China manufacturer - Hejian Perfect Drilling Equipment Co., Ltd.

Price:	500.0~1500.0 USD
Payment Terms:	T/T
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: all kinds of bits

Production Capacity: 500

Delivery Date: One week

Tricone rock drill bits: Hard rock tricone bits

Means of Transport: Ocean

Packing: Wooden cases

Tricone rock drill bits for oil/well drilling: Hard rock tricone bits for ...

1. kingdream rock roller bit
2. proven by ISO9001&API
3. best bearing system
4. over 30 years history of manufacture

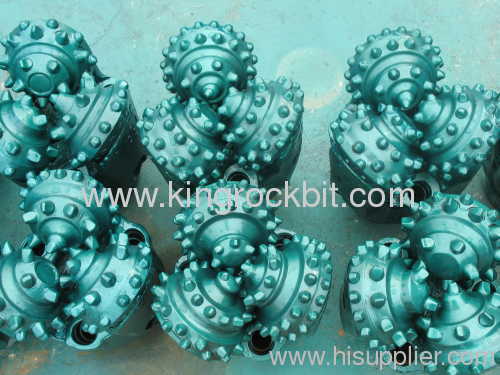

API Tungsten carbide TCI drill bits for well drilling
1.SEAL AND LUBRICATION
The advanced metal seal package consists of two metal seats and two elastic energizers. Compressed energizers ensure good contact being kept on two sealing surfaces of metal rings by elastic force, and achieve the bearing seal. In the drilling, metal seal are relatively dynamic, and the energizers are static. This will improve the reliability and durability of bearing seal. The pressure compensator system and advanced grease can greatly increase the lubricating reliability.

Model
IADC CODE	116 117 12 6127 136 137 216 217 226 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347
IADC CODE	417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535
available sizes:	From 2 7/8 to 26" larger sizes for hole opener bit ,reamer bit
advantage	most favourable price and best qualtity
bearing type:	sealed bearing and non-sealed bearing HJ(metal sealed journal bearing) HA (rubber sealed journal bearing aircooled bearing type
Formation or layer	soft ,medium soft ,hard,medium hard,very hard formation
Button size (extra features)	Button bit,saw teeth 1) Y-Conical teeth 2) X-chisel teeth 3)K- wide teeth 4)G- Gague protection
Material	Alloy steel ,carbide
Packing	Wooden case or steel case
Payment terms	T/T,L/C,Western union
Delivery terms	By sea or by air
Delivery time	Within 3 to 7 days
Market	Canada, USA,Middle east ,Africa,Europe
Application	petroleum&gas ,water well ,mining and tectonic industries ,oil field, construction, geothermal, directional boring, and underground foundation work

API Tungsten carbide TCI drill bits for well drilling
MAIN SELECTIONS

Inch(in)	5 7/8	6	6 1/8	6 1/4	7 7/8	8 3/8	8 1/2	8 3/4	9 1/2	9 5/8	9 3/4	9 7/8	12 1/4	13 3/4
Metric(mm)	149.2	152.4	155.6	158.7	200	212.7	215.9	222.2	241.3	244.5	247.3	250.8	311.1	349.2
Bit Type	437	437	437	437	447	417	417	417	417	417	417	417	417	417
	517	517	517	517	517	437	437	437	437	437	437	437	437	437
	537	537			537	517	517	517	517	517	517	517	517	517
	617	617			547	537	537	537	537	537	537	537	537
	637	637			617	617	617	617
						637	637	637
API Regular Pin (in)	3 1/2				4 1/2				6 5/8
Recommended make-up torque for bit shank (KN.m)	9.50-12.2				16.30-21.70				37.93-43.30

API Tungsten carbide TCI drill bits
2. GAUGE STRUCTURE
Multiple gauge protection with gauge trimmers on heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.

3.BEARING STRUCTURE

High precision bearing with two thrust faces. Balls lock the cone.Hardface heard bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved and suitable for high rotary speed.
API Tungsten carbide TCI drill bits for well drilling
4.CUTTING STRUCTURE

The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit.
API Tungsten carbide TCI drill bits for well drilling

5.tructures

Button size (extra features)	Button bit,saw teeth 1) Y-Conical teeth 2) X-chisel teeth 3)K- wide teeth 4)G- Gague protection
Material	Alloy steel ,carbide
Packing	Wooden case or steel case
Payment terms	T/T,L/C,Western union
Delivery terms	By sea or by air
Delivery time	Within 3 to 7 days
Market	Canada, USA,Middle east ,Africa,Europe
