API Tricone rock drill bits from China manufacturer - Hejian Perfect Drilling Equipment Co., Ltd.

Price:	500.0~1500.0 USD
Payment Terms:	T/T
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: Tricone drill bits

Production Capacity: 500

Delivery Date: One week

Tricone bit for oil and other mineral mining: Hard rock tricone bits for ...

Means of Transport: Ocean

Packing: Wooden cases

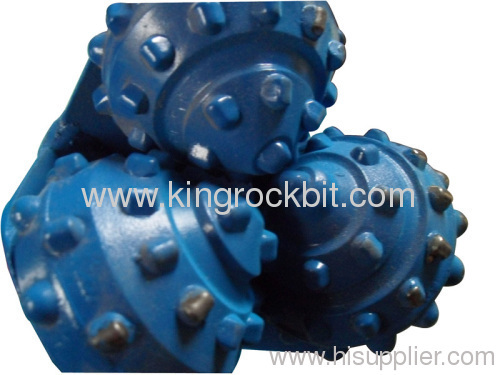

API Tricone rock drill bits: Hard rock tricone bits

(1) strong resistance to abrasion and impact resistance.
(2)Cutter's quality performance is good.
(3)Stocks adequate, time delivery.

API Tricone rock drill bits for well drilling
1.Advantages of our products

(1) strong resistance to abrasion and impact resistance.

(2)Cutter's quality performance is good.

(3)Long work life.

(4)Stocks adequate, time delivery.

(5)Rich experience in drill bit.

2.detailed description of this product

Available sizes:	4 5/8"(118mm), 5 7/8"(149mm), 6"(152mm), 6 1/2"(165mm), 6 5/8"(168mm), 7 1/2"(190mm), 7 7/8"(200mm), 8 1/2"(215.9mm), 9 1/2"(241mm), 9 5/8"(245mm), 11 5/8"(295mm), 12 1/4"(311mm), 13 5/8"(346mm), 14 3/4"(374mm), 15 1/2"(394mm) 16"(406mm), 17 1/2"(445mm), 18"(457mm), 26"(660mm)
Model NO.	437,447,517,527,537,547,617,637,737
IADC CODE	116,117,126,127,136,137,216,217,316,317,346,347
RPM(r/min)	140~60
WOB(KN/mm)	0.35~1.0
Thread Connection	7 5/8 reg pin
Bearing type	Sealed bearing and non-sealed bearing HJ(metal sealed journal bearing) HA(rubber sealed journal bearing) Aircooled bearing type
Applicable Formations	Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, soft limestone, etc
Circulation system	Mud pump
Material	Alloy steel, carbide
Delivery terms	By sea or by air
application	Petroleum and gas, water well, mining and tectonic industries, oil field, construction, geothermal, directional boring and underground foundation work
Export Markets	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

API Tricone rock drill bits for well drilling
1>Cutting Structure
The durability of premium tungsten carbide insert is improved with new formulas and new techniques for insert bit.
2>Gauge Structure
Multiple gauge protection with gauge trimmers on the heel of cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.
3>Bearing Structure
High precision bearing with two thrust faces. Ball lock the cone. Hardfaced head bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved.
API Tricone rock drill bits for well drilling
4>Seal and Lubrication
Premium O-ring, Optimal seal compression and curved seal structure can enhance the seal performance. The pressure compensator system and advanced grease can greatly increase the lubricating reliability.
5>Product Application
It can receive high WOB in the conventional drilling. It is suitable for various formations by matching cutting structure with different tooth shape, tooth density and tooth exposure height.

Hejian Wanda Petroleum Machinery Co.,Ltd. Supplies all kinds of PDC coring and non-coring bits, PDC sintering matrix bits and PDC anchoring bit. We also can design PDC bits according to customer requirements, such as different geology condition, special strata and so on. If you have interest of our products, pls feel free to contact us! We ensure you best quality with the most competitive price!
API Tricone rock drill bits for well drilling
